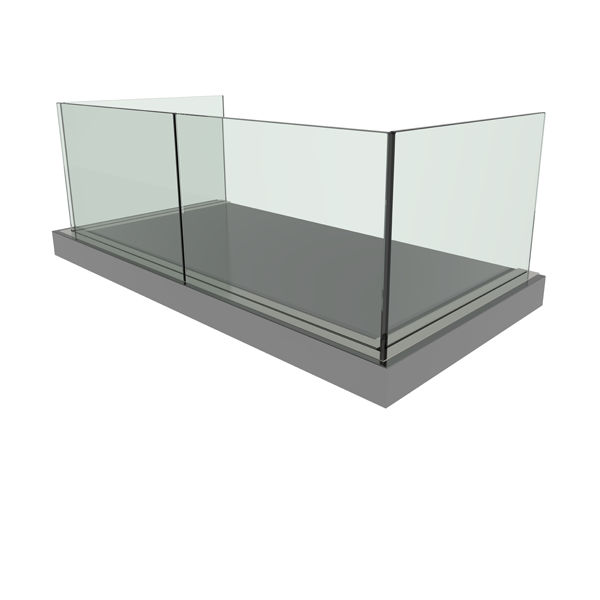

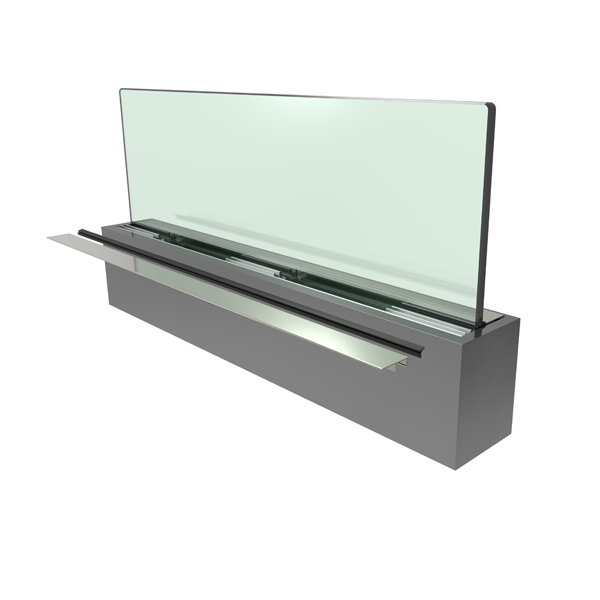

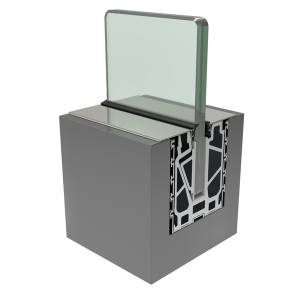

GS-03-G Balustrade System has designed for safety and infinite vision. It can be used easily in both interior and exterior places.
FIELDS OF USAGE
This system has designed for provide safety and vision commercial buildings , airports, hospitals, shopping malls, residential buildings etc. many constructs like staircases, balconies, galleries, and swimming pool edges, terraces etc. It can be easily used interior and exterior places.
GS-03-G Balustrade System has designed for safety and infinite vision. It can be used easily in both interior and exterior places.
| GLASS HEIGHT = H | THICKNESS ( mm ) | L | TEST VALUES ( kN ) |
| 0 – 599 mm | ( 5 + 1,52 + 5 ) , ( 6 + 1,52 + 6 ) | 350 mm | |
| ( 8 + 1,52 + 8 ) , ( 10 + 1,52 + 10 ) | 400 mm | ||
| 600 – 899 mm | ( 5 + 1,52 + 5 ) , ( 6 + 1,52 + 6 ) | 300 mm | |
| ( 8 + 1,52 + 8 ) , ( 10 + 1,52 + 10 ) | 350 mm | ||
| 900 – 1099 mm | ( 5 + 1,52 + 5 ) , ( 6 + 1,52 + 6 ) | 250 mm | |
| ( 8 + 1,52 + 8 ) , ( 10 + 1,52 + 10 ) | 300 mm | ||
| 1100 – 1200 mm | ( 5 + 1,52 + 5 ) , ( 6 + 1,52 + 6 ) | 200 mm | |
| ( 8 + 1,52 + 8 ) , ( 10 + 1,52 + 10 ) | 250 mm | 3,1 kN | |
|
GS-03-G THE GLASS MEASURES FOR THIS SYSTEMS ARE ON THE TABLE ABOVE. * ACCORDING TO HEIGHT OF THE BUILDING, GLASS HEIGHT AND THICKNESS MAY BE VARY.* |
|||
